6 Pin RGB+WW LED Strip Light Wire to Wire Connectors

$11.99
$11.99 -

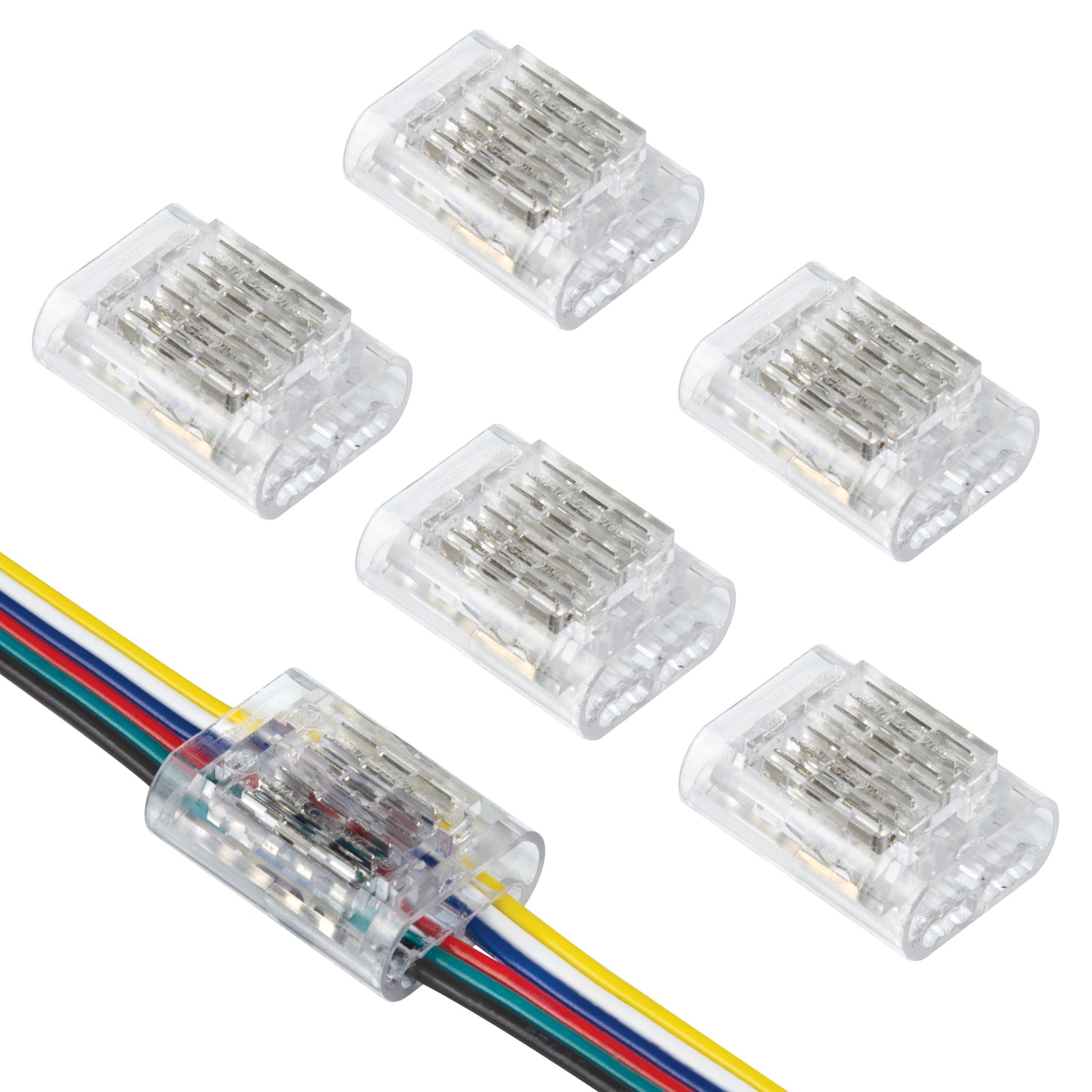

6C wire to wire connectors for RGB+WW multicolor LED lighting. Lightweight, compact design for clean, professional looking installations.
Pack Size
Free & Same-Day Shipping Available - Details
sku: 765123

Features

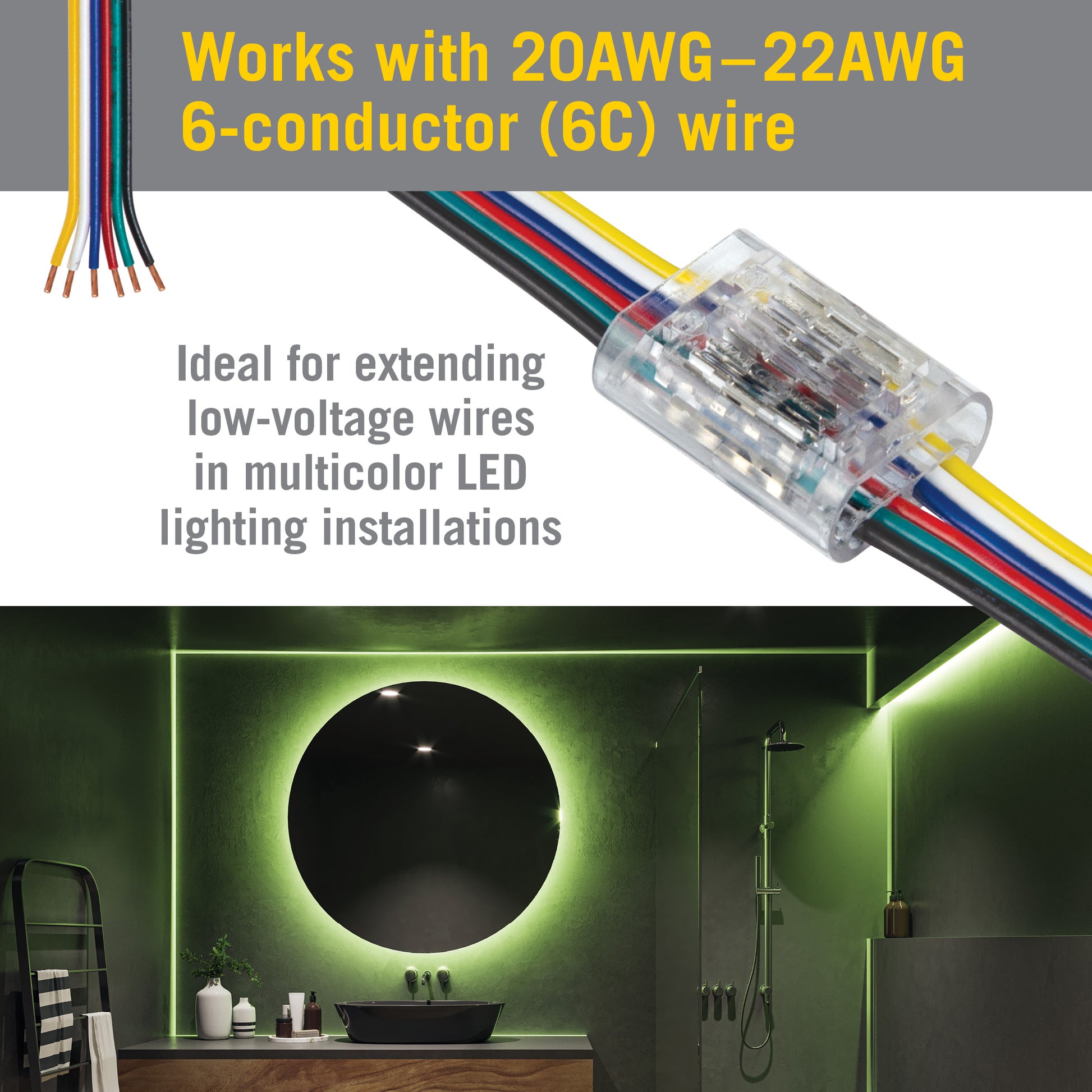

  • Lightweight, compact connector compatible with 6 conductor 20-22 AWG wire
  • Perfect for extending low-voltage wires in 6C RGB+WW multicolor LED lighting installations

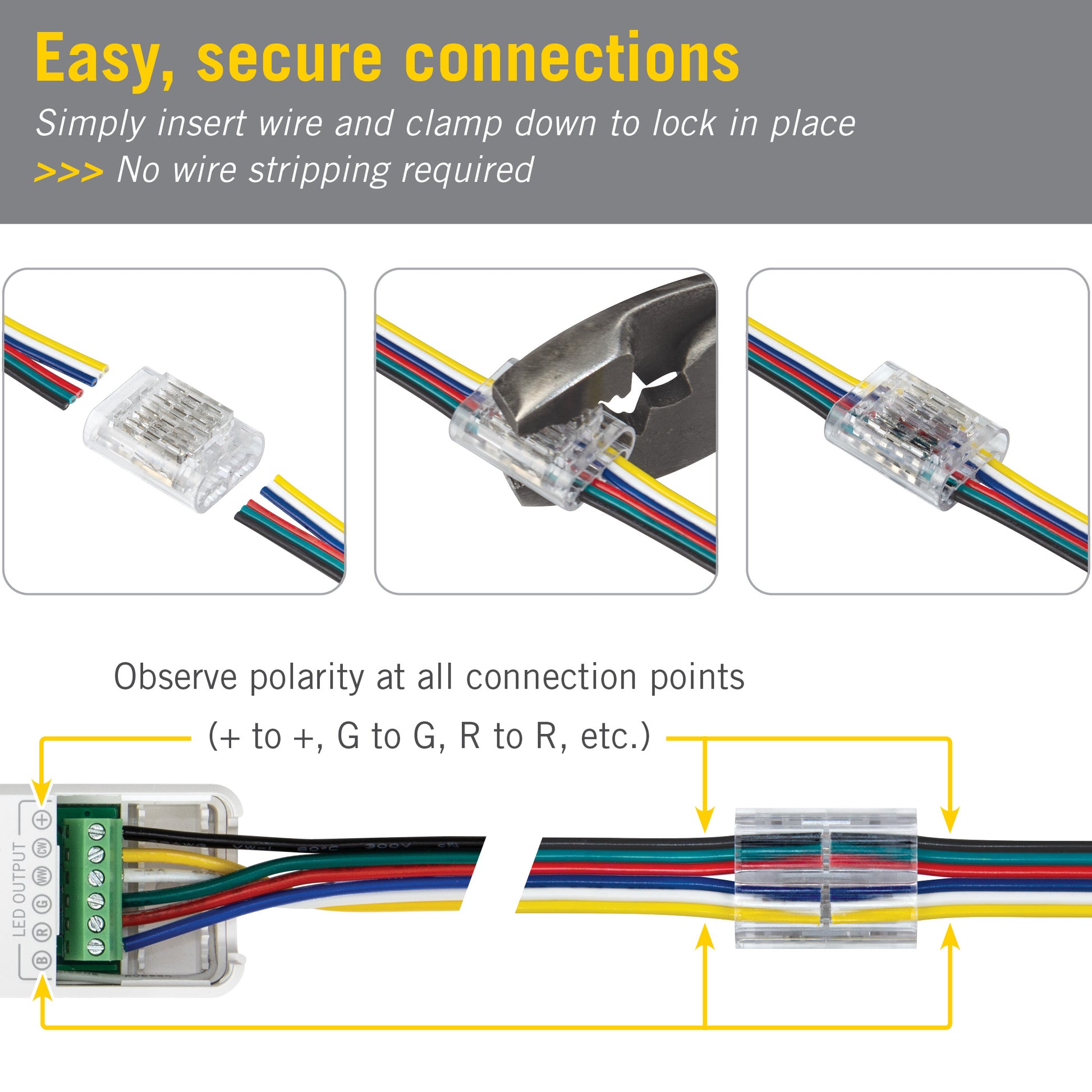

  • No wire stripping needed; simply insert wire, press to close, and clamp with pliers to lock
  • Observe polarity at all connection points (+ to +, G to G, R to R, etc.)
  • One-time use only; connector cannot be reopened once locked
INSTRUCTIONS COMPATIBILITY

Product Description

Wire-to-wire LED strip connectors are ideal for extending low-voltage wires in Armacost Lighting multicolor RGBWW LED light installations. Low-profile plastic connectors are an excellent alternative to bulky, heavy wire nuts. Sleek, compact connectors are easy to hide for a cleaner, more professional look. Create easy, secure connections without wire stripping; simply insert wires and lock with pliers. Be sure to maintain polarity (+/- and wire colors).

Product Specifications

Item #765123
Specification

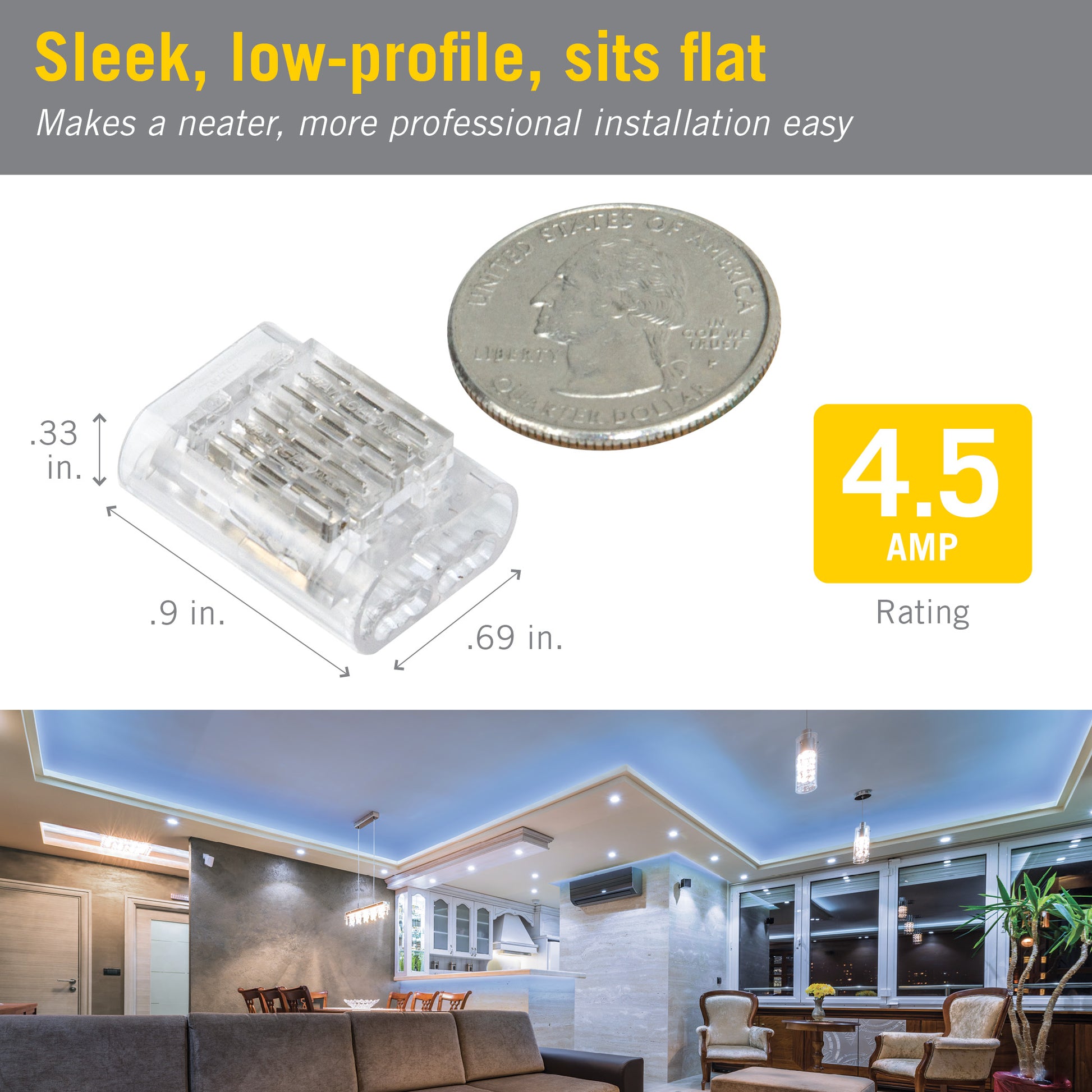

Amps
4.5A
LED Tape Light Compatibility
6C RGB+WW, SMD (Traditional), COB (Continuous)
Warranty
1 Year Limited
