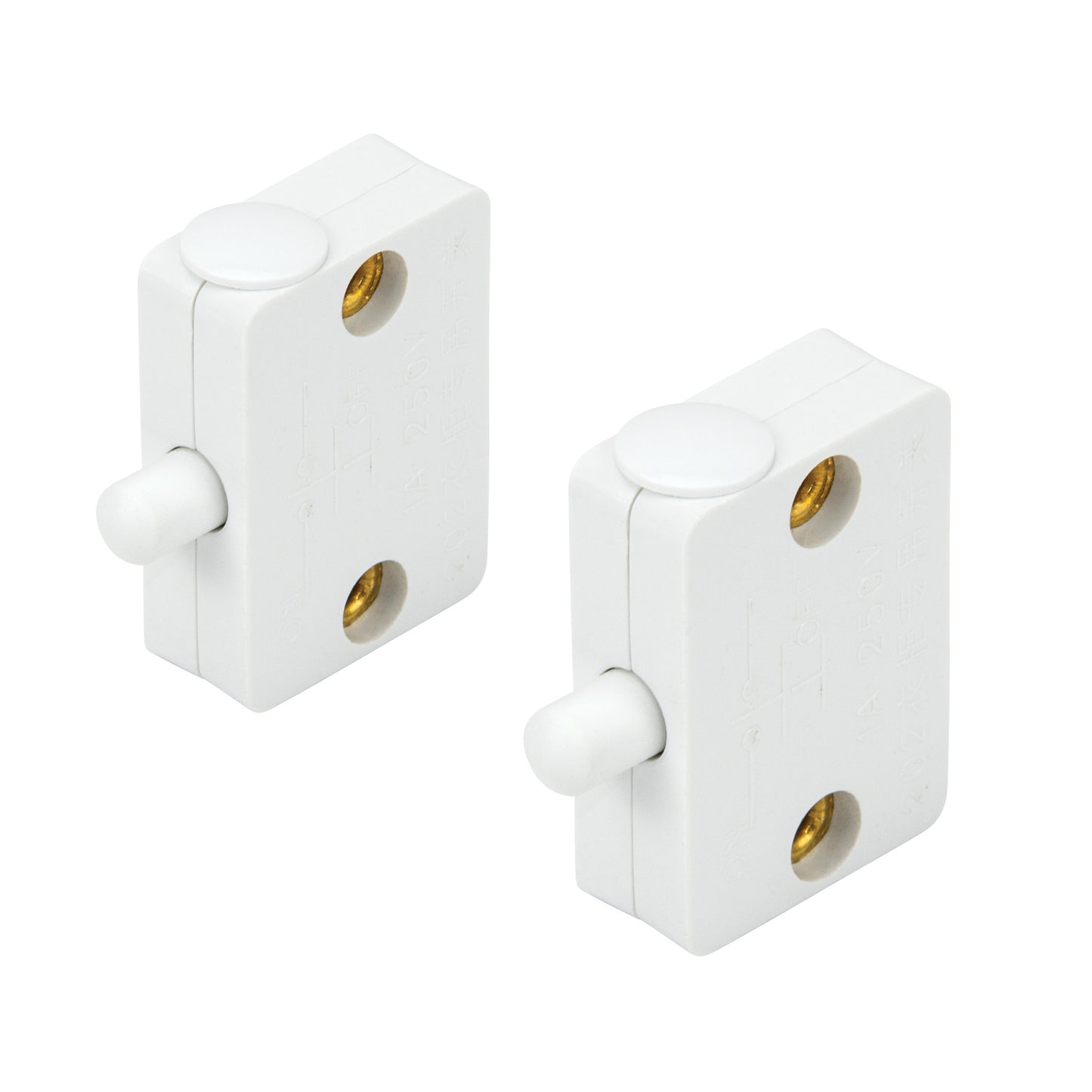

Cabinet Door LED Light Switch

$7.99
$7.99 -

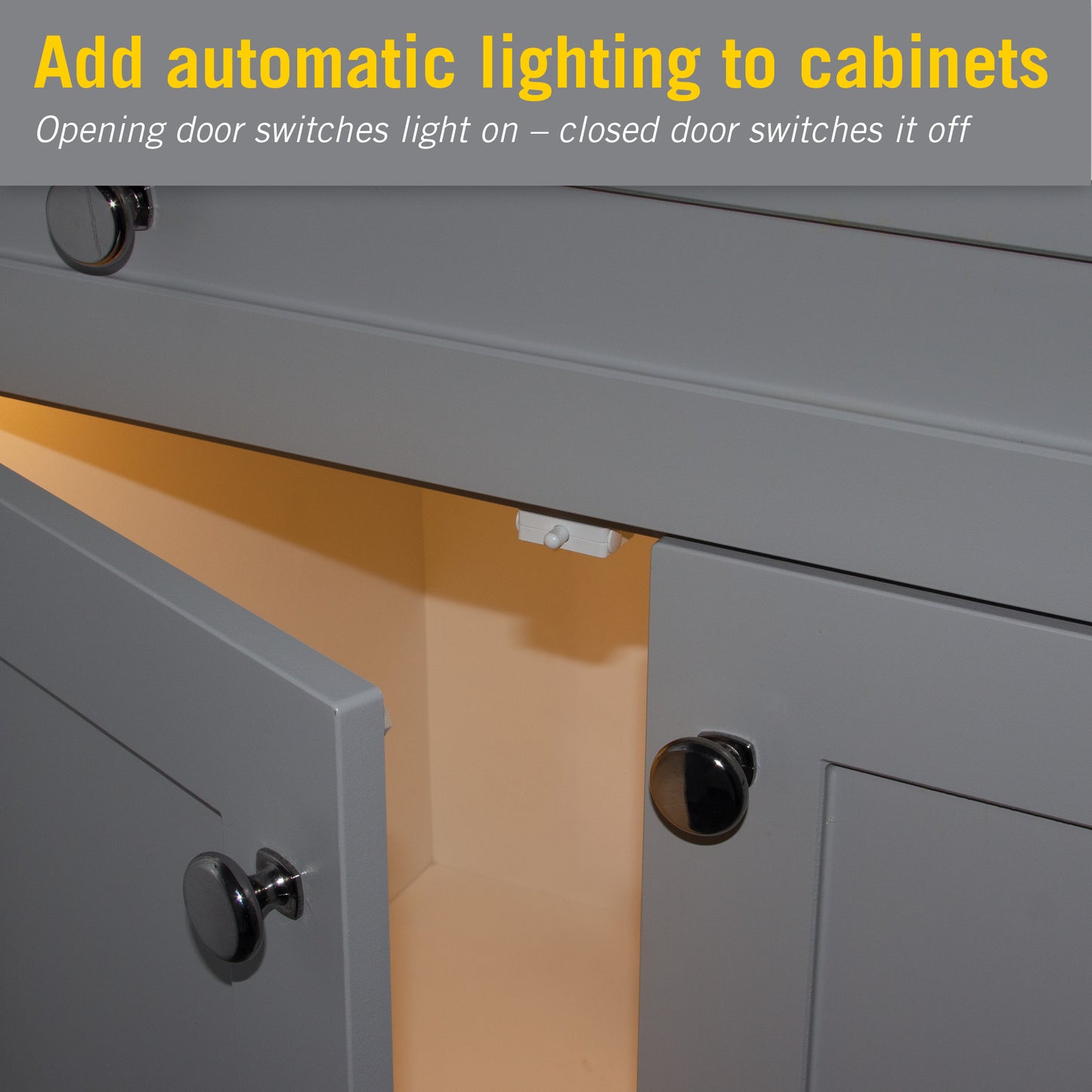

The door activated light switch is designed to work together with LED lighting in cabinets, closets, wardrobes, and drawers. The pressure switch button turns LED lights on automatically by opening or closing a door or drawer. The LED light on/off switch is convenient and energy efficient.
sku: 940007

Features

  • Control LED lights by opening and closing cabinet doors or drawers
  • Door activated light switch saves energy and extends the life of your LED lights
  • Easy hardwire installation with LED lights and LED drivers using low voltage DC wire
  • High quality construction is durable and consistent
  • 12VDC and 24VDC compatible
  • Push button trigger height is 7mm, but only a slight pressure need be applied to activate on/off action
  • Perfect for boat and RV pantries, cabinets, and sliding doors

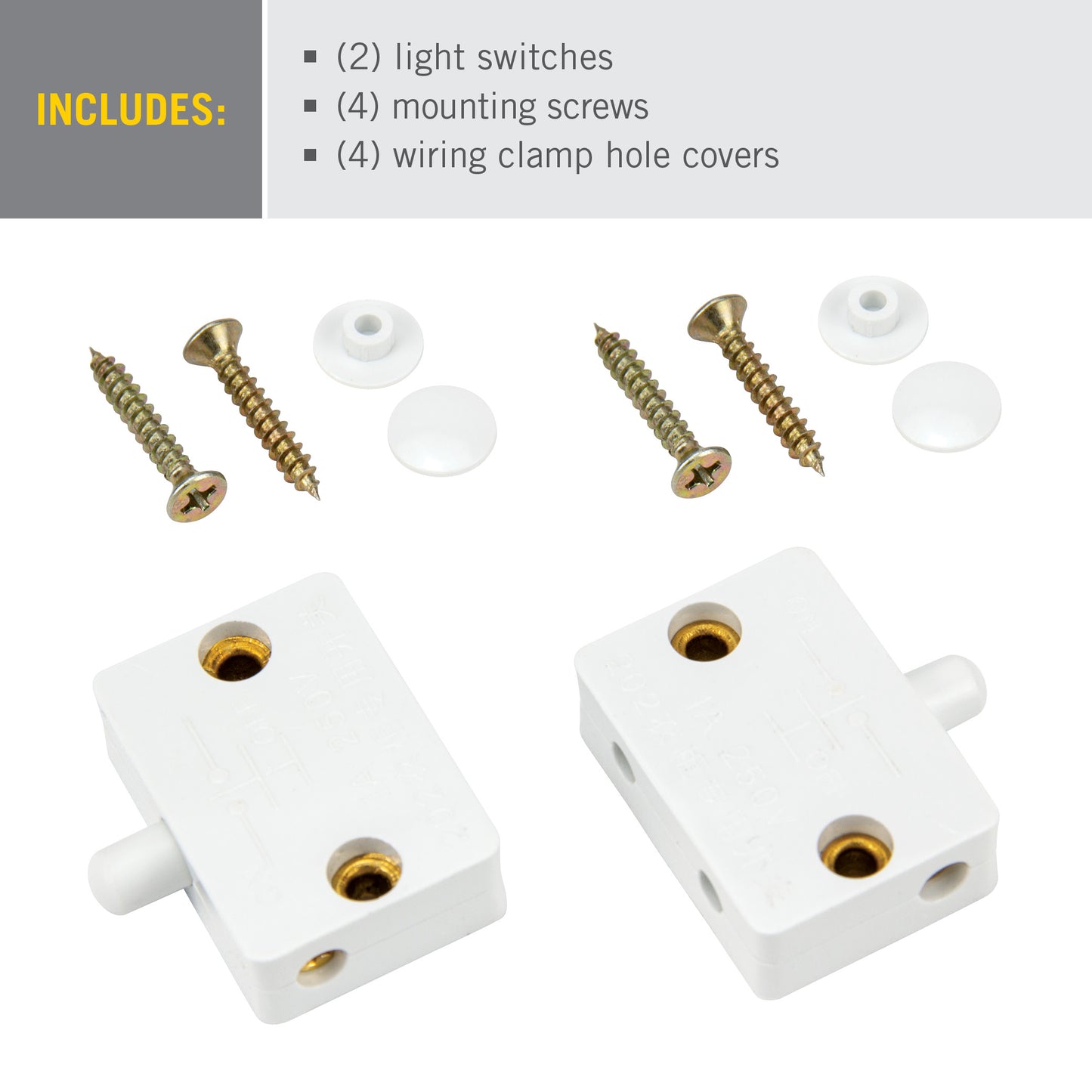

  • Mounting hardware included
  • Pack of 2
INSTRUCTIONS

Product Description

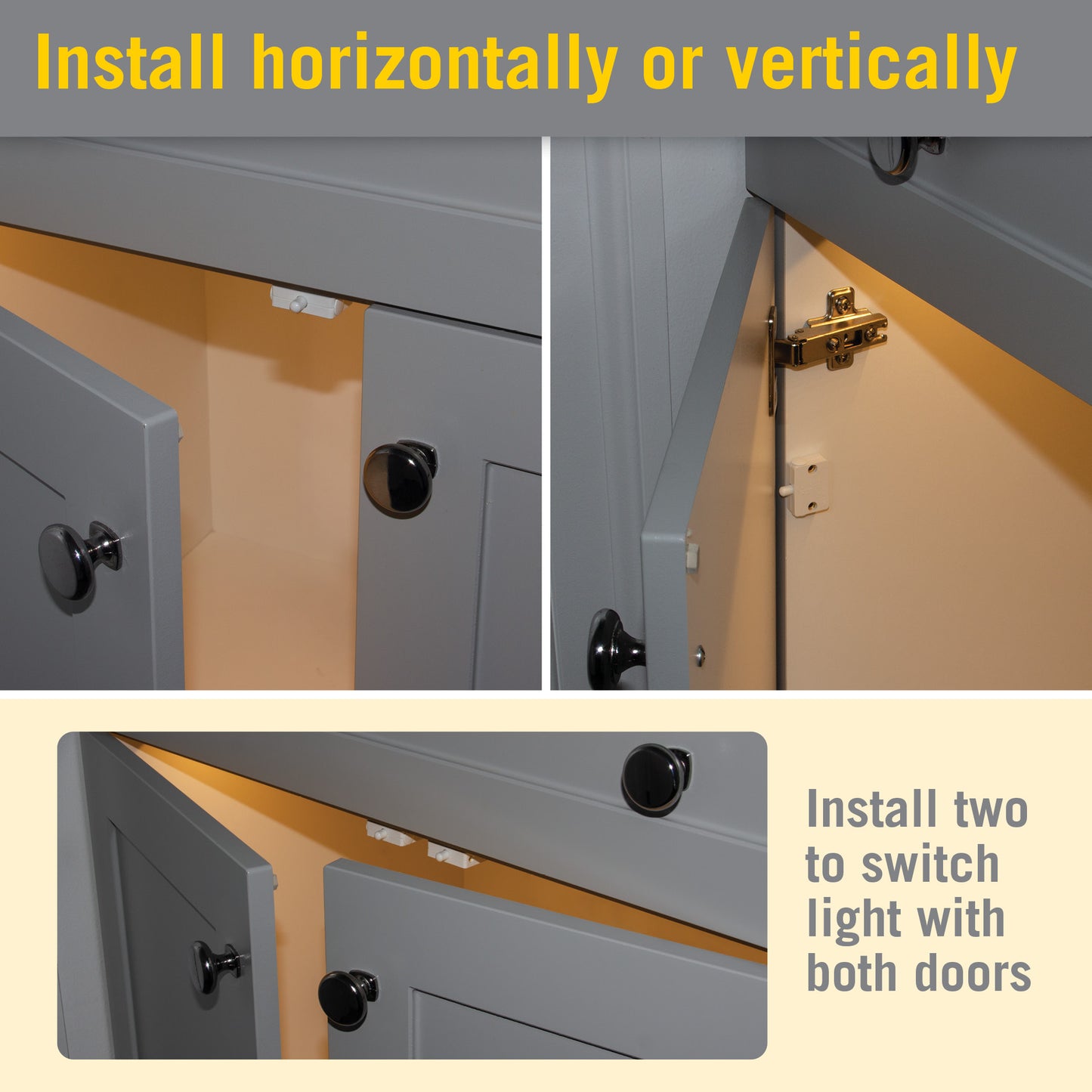

The push button cabinet door light switch from Armacost Lighting is designed to work with LED lights installed in cabinets, closets, pantries, wine cabinets, or any space with a door or drawer. The pressure switch turns LED lights on automatically when a door or drawer is opened. When the door or drawer is closed, the LED light will turn off. Install in a single run connecting one light to one LED power supply for small spaces, or in an array setup with multiple LED lights for larger areas. Note maximum amp output for array installations.

Automatic ON/OFF Sensor Switch Specifications:

  • Input Voltage: 12VDC-24VDC
  • Output Voltage: 12VDC-24VDC
  • Output Current: Maximum 1A
  • Max load at 12V: 12W
  • Max load at 24V: 24W
  • Dimensions: 25mm x 33mm x 11mm

Product Specifications

Item #940007
Specification
Connection Type
Hardwire
Damp/Wet Rating
Dry Rated
Mounting Method
Screw
Warranty
3 Year Limited
